●FZ‑2 Electric Combined Table provides a platform that works well with ophthalmic instruments.

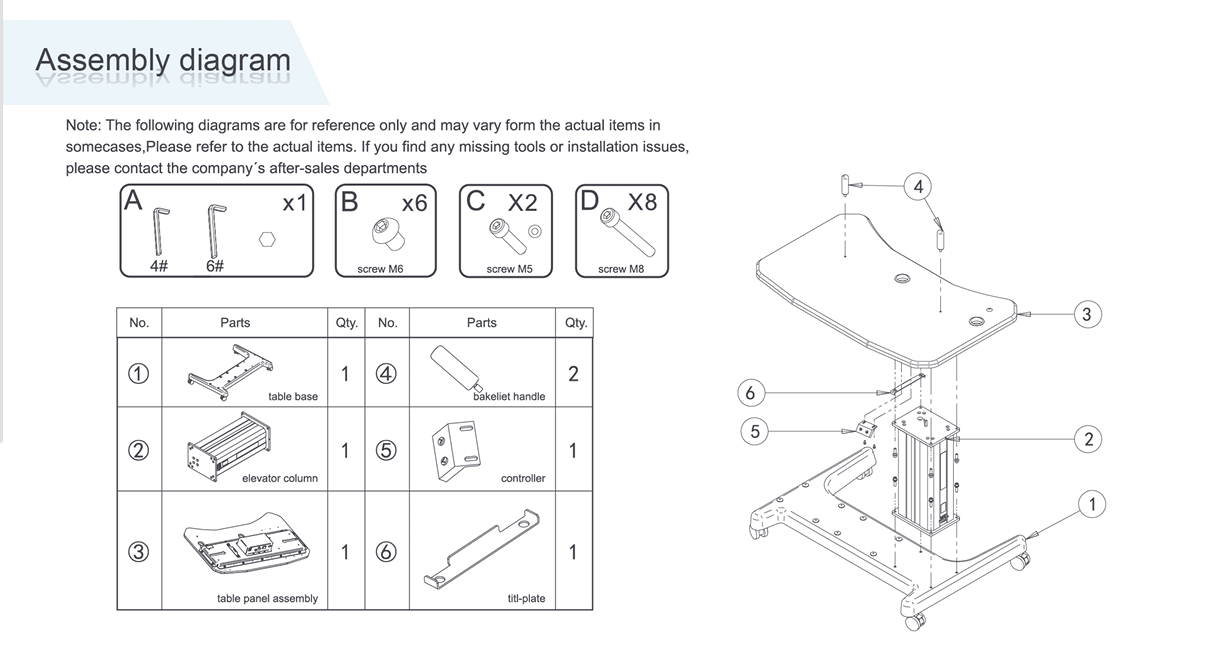

●It is Interchangeable design, so that a single table has three ways to assemble.
●It can meet the needs of various ophthalmic instruments or instrument combinations, which will bring great convenience to eye hospitals and community clinics.
●It has left, middle and right column installation position, which will greatly improve the comfort level of user's legs.
●It has ergonomic auxiliary handles, which help the user to have a comfortable sitting position during the examination.
●The perfect combination of wood and metal parts, while satisfying high stability and simple appearance.
●The position of the side lifting buttons can be installed on the left or right sides according to user's requirements.
●It can meet the work of 4 instruments at the same time, and is equipped with RJ45 network interface.
●The combined table can also be optional computer, cantilever bracket and printer.
| Key parameters | |
|---|---|
| Optometry Tray Size | 970mm*600mm*25 mm |
| The Optometry Tray Lift Up and Down Size | 210mm |
| Working Range | 746‑956mm |
| Allowable Weight | 125kg |
| Input/Output Electric Voltage | AC 220V 50Hz |
| Rated output power | 1100W |
| Power Interface | 4 Pcs |
| Weight | 34kg |
| Min‑Height | 645mm |
| Max‑Height | 855mm |
| Temperature | 0‑45℃ |
| Frequency | 10%(The motor continuous works 2min. and rests for 18min.) |
