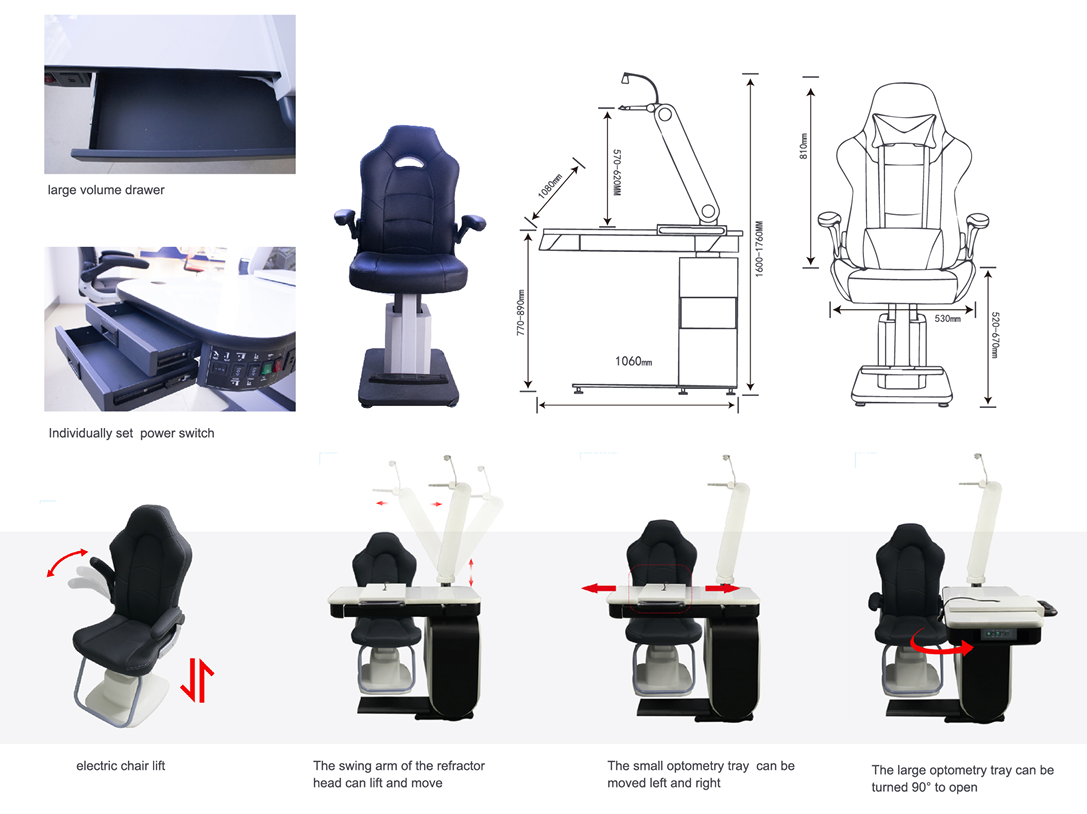

●The large optometry tray with electric lifting and 90° rotation function, easy access, can meet the use of adults or children.
●The swing arm of the refractor head is electrically lifted and rotated, and triggered by a key to realize automatic measurement mode switching.
●One electric lifting chair, armrest can be adjusted 90° freely, meeting customer requirements.
●The small optometry tray moves smoothly from side to side and is used to install phoropter or ophthalmic instruments.
●Connecting Phoropter(FAP-8) and Auto refractometer (FRK-710) for supporting use greatly improves optic efficiency.
●The desk is equipped with an anti-pinch switch; trigger the switch and the motor will stop moving.
●Small side drawers can store optometric tools to maximize the use of internal space.
| Key parameters | |
|---|---|
| Assembly table size | 1060x1760x1600mm |
| Minimum installation space | 1100x1350x1760mm |
| Fully expand the installation space | 1220x1760x1760mm |
| Large table size | 1055x480mm |
| Small table size | 495x280mm |
| Large drawer volume | 540x380x60mm |
| Small drawer volume | 260x185x40mm |
| The height of the roller chair(Distance from table) | 570-620mm |
| Table rotation range | 0~90° |
| Chair height(Distance from floor) | 520-670mm |
| Lighting parameter | DC24V 3W |
| Maximum power | 100W |
